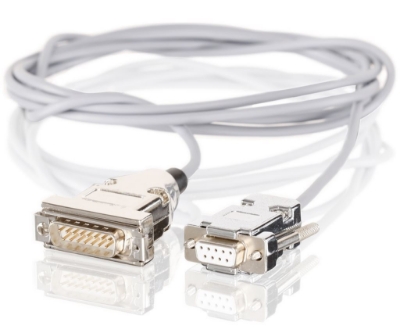

ACCON-COM-Cable

Low-cost adapter to connect a PC with a S5 PLC.
The voltage supply is effected via the PLC interface, thus an external voltage feed is not necessary.

Manufacturer: DELTA LOGIC

SKU: 10203

Cable lenght

The low-cost S5 adapter

The ACCON-COM-Kabel is a low-cost adapter to connect a PC with a S5 PLC. The voltage supply is effected via the PLC interface, thus an external voltage feed is not necessary.

Perfect fields of application

As programming adapter to create and change the PLC program
As communication adapter for visualizations
As communication adapter for accessing the PLCs data files

Varied ranges of application

Programming a S5 controller e.g. with ACCON-PG or the Siemens' STEP 5 software. Connecting visualizations with S5 controllers.

Technical highlights

Connection to COM interface
No separate voltage feed necessary

Technical data

Connection to the PC	RS-232 with 9-pin SUB-D bushing, cable stationary mounted
Connection to the PLC	TTY with 15-pin SUB-D plug
Supported PLCs	S5 of the U series
Protection type	IP 20
Supply voltage	5 VDC from PLC interfaces
Galvanically isolated	No
Extension possible	Not recommended
