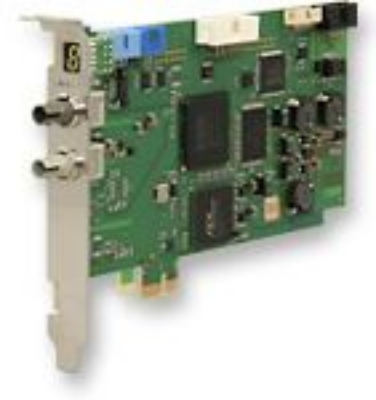

ibaFOB-io-Dexp

1x fiber optic inputs + outputs, DMA functionality, PCI-Express card - Fiber Optical Board (Simplex) with one input link and one output link

Technical data:

• Manufacturer: iba AG
• PCI-Express fiber optic card with DMA functionality
  Compatible to the protocols used by former FOB-cards with
  2 / 3.3 / 5 / 32 MBit/s data transmission rate
• Automatic detection for asynchronous / synchronous mode
• PCI-Express card, DMA
• Usable for PCIe-X1, -X4, -X8, -X16 slots
• 1x unidirectional optical input link
• 1x unidirectional optical output link
• 62,5/125µm fiber optic wires with ST jacks
• max. length of optical fiber to 2000m between devices
• Can be expanded with an ibaFOB-4o-D (..-PCI) to an output system for to mirror the input link to an additional FO output

Special Remark:

• Supported only from ibaPDA-V6, ibaQDR-V6 and ibaLogic from V4 onwards

Status:available
