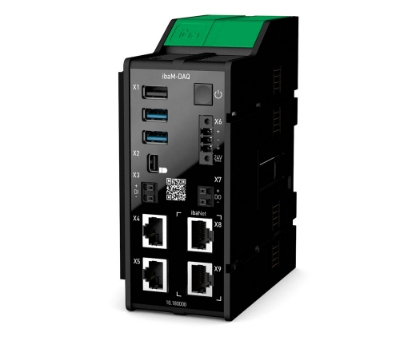

ibaM-DAQ
ibaM-DAQ
Data Acquisition Device
(HarmonizedCode:84733080, ECCN:N, LKZ:DE, AG:N)
Manufacturer:
iba-ag
SKU:
10.180000
Product Files
Brochures
ibaMAQS - Modular measurement system
Head modul with integrated WIBU USB Dongle - Installed as an ibaPDA-Server
Technical Data:
Manufacturer: iba AG
Module for Data Acquisition
CPU module with Intel Atom x7-E3950, 4x 1.6 GHz
Operating System Windows 10 IoT Enterprise x64 LTSC 2021/v21H2
512 GB SSD
8GB RAM
1 Digital Input ± 24V onboard
1 Digital Output DC-switch onboard
Standard interfaces for 2x Ethernet, 2x ibaNet, 3x USB, Mini-Display-Port
Installed with the following SW licenses:
- ibaPDA for 64 signals
- ibaPDA-Interface-PLC-Xplorer
- ibaPDA-OPC-UA-Server+
- ibaPDA-Data-Store-MQTT-16
All SW lizenzen are bound to the device and may used exclusively for this device.
PDA Software is extendable up to 1024 signals with additional licenses
Extendable with modules of the MAQS modular system
Extendable with ethernet based interfaces
Fanless, no rotating parts
E easy mounting for DIN-rail
Remarks:
This is a class A product. In a domestic environment this product may cause radio interferences in which case the user may be required to take adequate measures.
To use a compact UPS in operation with the device is highly recommended.
License protection via integrated WIBU USB dongle
Remote access via ibaPDA-Client through ethernet interface
Contains software maintenance and support after the purchase for 2 years. Afterwards a software maintenance and support contract is required.
Successor device for ibaDAQ-C, fully application compatible
