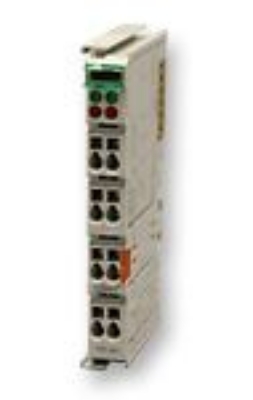

ibaNet750-457/4-AI +/-10V

Process coupling: Analog input module for ibaNet 750 (HarmonizedCode:84733080, ECCN:N, LKZ:DE, AG:N)
Manufacturer: iba-ag
SKU: 15.144570

4-Channel Analog Input,+/-10 V; Single Ended - 4-Channel Analog Input, +/-10V Single ended

Technical Specification:

  • DIN rail mount
  • Power supply via system bus
  • 4 inputs +/-10V, single ended, 12 Bit
  • 4 galvanic isolated channels with common ground
  • Conversion time approx. 10ms
  • Ri > 100 kOhm
  • Power consumption approx. 60mA

Special Remarks:

  • This terminal and all other 4-channels-analog-input terminals cannot be used on an extension unit with a terminal-bus-extension-start-module for ibaNet750.
  • Only 2-channel-input-terminals can be used within an extension unit.
  • Warranty period extended to 5 years.

Status:available
