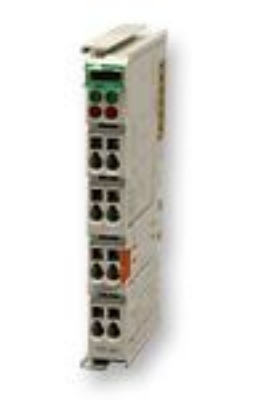

ibaNet750-465/2-AI 0..20mA, single ended

Process coupling: Analog input module for ibaNet 750 (HarmonizedCode:84733080, ECCN:N, LKZ:DE, AG:N)
Manufacturer: iba-ag
SKU: 15.144650

2-Channel Analog Input, 0..20mA, single ended - 2-Channel Analog Input, 0-20mA, single ended

Technical Specification:

  • DIN rail mount
  • Power supply via system bus
  • 2 inputs 0mA to 20mA, 12 Bit
  • 2 galvanic isolated channels, single ended
  • Conversion time approx. 2ms
  • Power consumption approx. 75mA

Special Remark:

  • Warranty period extended to 5 years

Status:available
