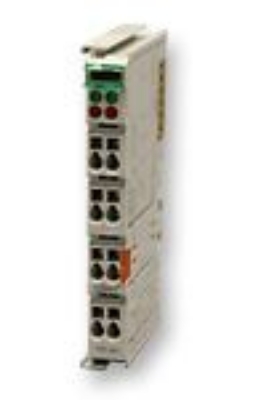

ibaNet750-512/2-DO Relais (Closing Contact)
Process coupling: Relais output module for ibaNet750
(HarmonizedCode:84733080, ECCN:N, LKZ:DE, AG:N)
2-Relais Out , 230V AC / 30V DC, 2A, Closing Conta - 2-Channel DO (Relais) non-floating, 230V AC / 30V DC, 2A
Technical Specification:
- DIN rail mount
- Power supply via system bus
- Load current: 2A AC / DC
- 2 closing contacts with common ground
- 1.5kV galvanic isolation
- cos phi max = 0.4, L/R max = 7ms
- Power consumption internal approx. 100mA
Special Remark:
- Warranty period extended to 5 years
Status:available
