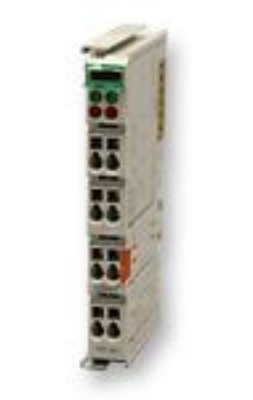

ibaNet750-631/1Ch-Incr. Encoder

1-Channel Incr. Encoder 0/90 Degrees - Incremental encoder interface for RS422, 1 Channel, 16bit

Technical Specification:

• Manufacturer WAGO
• Type 750-631 / 000-001
• Encoder interface A, A*, B, B*, C, C*
• Power consumption (intern) 25 mA
• Signal voltage DC 5 V to 24 V
• Counter 16 bit binary
• max. frequency 1000 kHz
• Quadrature decoder 1-time
• Zero puls latch 16 Bit
• Operation read, set, activate
• Power supply DC 24V (-15% / + 20%)
• Power consumption typ. 85 mA without encoder
• Encoder operation voltage DC 5 V
• Encoder output current max. 300 mA
• Data range internal 1x 32 bit Data; 1x 8 bit Control / Status;
  1x 8 bit reserved

Special Remark:

• Warranty period extended to 5 years

Status:available
