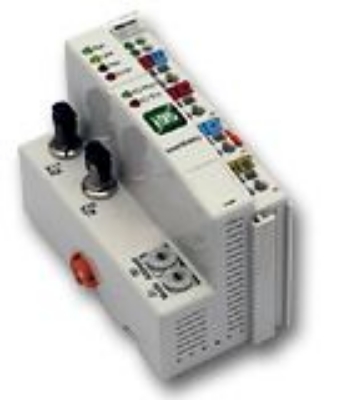

Process coupling: Bus coupling module for WAGO IO System750 (HarmonizedCode:84733080, ECCN:N, LKZ:DE, AG:N)
Manufacturer: iba-ag
SKU: 15.140010

Decentralized input and output system - Headmodule for operating with 32Mbit-Flex-Protocol for fast FO communication and for operating in a compatible mode for replacement purposes for previously used devices with 3Mbit protocol

Technical Specification:

  • Manufacturer: iba AG
  • Bus connection for WAGO I/O-System 750
  • Power supply: 24 V DC (±10 %)
  • Load power supply: 24 V DC external
  • Supports analog and digital input and output modules and complex terminals
  • Automatic module detection (32Mbit Flex)
  • Flexible setting of the sampling rate (32Mbit Flex)
  • Ring topology for input and output processes with up to 15 devices (32Mbit Flex)
  • Replacement for previous ibaNet750-BM devices
    ibaNet protocol
  • 32Mbit Flex: Can be adjusted flexibly (up to 40 kHz / 25 µs); 1024 analog signals (INT) + 1024 digital signals at 1 ms
  • 32Mbit: 500 µs; 512 analog signals (INT) + 512 digital signals
  • 3Mbit: 1 ms; 32 analog signals (INT) + 32 digital signals
  • Assembly on the mounting rail

Special Remarks:

  • A various number of WAGO modules are available at iba
  • Device runs with FO communication via FOB-cards only
