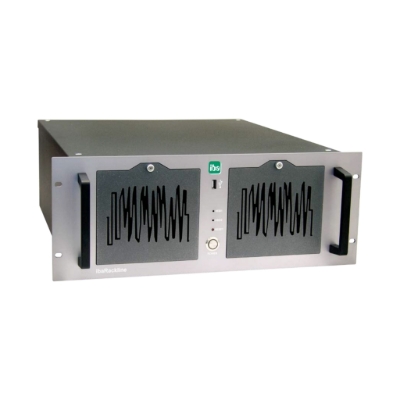

ibaNordic Rackline TFR 24VDC

Technical Data:

• Manufacturer: iba AG
• 19" rack mount case ibaRackline
• Redundant Power Supply 24 VDC
• Input range: DC 18V ... 36V
• ibaOut-State Monitoring Board (Temp. and Power Supply monitoring)
• CPU Intel XEON E 2176G, 3.6GHz
• Industrial Motherboard C246 Chipset and LGA1151 Socket
• On board Intel UHD Graphics
• Max. number of simultaneously usable monitors: 3
• On board Gigabit Ethernet 2x 10 / 100 / 1000 Mbps
• On board 7.1 channel HD audio
• 6 x PCI Express Slots:
  1 x PCI-e x16 with SAS RAID controller
  1 x PCI-e x16 slot for 1 x PCI-e x8
  1 x PCI-e x4
  3 x PCI-e x1
• 1x PCI empty
• 32GB DDR4 RAM
• 1x drive mounting frame 5.25", for up to 4x SAS 2.5" HDD/SSD
• 2x 1600GB SAS SSD
• 1x M.2 (2242/2260/2280) M-Key, supports Intel RST, PCI-e x4 mode SSD
• 1x M.2 (2230) A-Key, supports WiFi module
• 8x USB 3.0 (housing backside)
• 1x USB 2.0 (housing inside / dongle)
• 2x USB 2.0 (housing front)
• 1x VGA, 1x HDMI, 1x DP
• USB keyboard, USB optical mouse
• Operating System: Windows 11 IoT Enterprise LTSC 2024
• Dimension (H x W x D): 180mm x 430mm x 500mm
  Total rack depth with holder: 500mm + 40mm
  Total width: front panel 430mm + 55mm<
