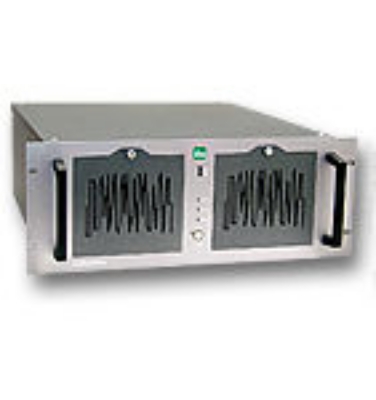

ibaRackline-PC CAM, XEON E, Win10

ibaRackline for mass data recording (HarmonizedCode:84714900, ECCN:4A994B1, LKZ:DE, AG:N)
Manufacturer: iba-ag
SKU: 40.005021

mass data recording system - embedded system - Applications:

  • Video recording (CAM/HMI)

Technical Specification:

  • Manufacturer: iba AG
  • 19" rack mount case
  • RAID5 system with SAS HDD technology
  • Redundand Power Supply 2x500W with changeable frame
  • Wide range input: 100V AC - 240V AC
  • CPU Intel XEON E 2146G, 3.5GHz
  • Industrial Motherboard C246 Chipsatz and LGA1151 Socket
  • On board Intel UHD-Graphic
  • Max. number of simultaneously useable monitors: 3
  • On board Gigabit Ethernet 2x 10 / 100 / 1000 Mbps
  • On board 7.1 Kanal HD Audio
  • 6 x PCI Express Slots; used for:
    - 1x PCI-Express x16 with SAS-RAID-Controller
    - 1x PCI-Express x16 empty
    - 4x PCI-Express x1 empty
  • 1x PCI empty
  • 32GB DDR4-RAM
  • 1x HD frame 5x3,5", SAS HDD
  • 5x 4TB SAS HDD
  • 1x M.2 (2242/2260/2280) M-Key, supports Intel RST, PCI-ex4 mode SSD
  • 1x M.2 (2230) A-Key, supports WiFi module
  • DVD drive external USB
  • 8x USB 3.0 (housing backside)
  • 1x USB 2.0 (housing inside / dongle)
  • 2x USB 2.0 (housing front)
  • 1x VGA, 1x HDMI, 1x DP
  • PS2-USB keyboard, PS2-USB optical mouse
  • Operating System: Windows 10 IoT Enterprise LTSC-2019
  • Dimension: (HxWxD) 180mm x 430mm x 500mm
    - (Total rack depth with holder: 500mm + 40mm)
    - (Total width: front panel 430mm + 55mm)

Special Remarks:

  • Part of the standard delivery is an external DVD-Drive for USB connection
  • Enhancement packages on extra costs:
    - Upgrade with NVME-SSD as OS partition
    - Upgrade storage size to 8TB per HDD
    - Upgrade storage size to 12 TB per HDD
    - Upgrade to server OS
  • Monitor must be ordered separately!
  • iba Plug&Play service (HW and Software purchased with PC installed and tested)

available
