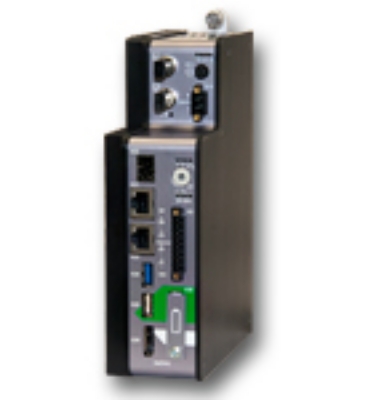

ibaDAQ

Data Acquisition Device (HarmonizedCode:84733080, ECCN:N, LKZ:DE, AG:N)
Tillverkare: iba-ag
Artikelnr: 10.170031

MA5 - Data Acquisition Unit with Windows 10 IoT Enterprise LTSC 2021 - Installed as an ibaPDA-Server

Technical Data:

  • Manufacturer: iba AG
  • Module for Data Acquisition
  • CPU module with Intel Atom E3950 4x 1.6 GHz
  • Operating system Windows 10 IoT Enterprise x64 LTSC 2021/v21H2
  • 512 GB SSD
  • 8GB RAM
  • 2 digital inputs ± 24 V onboard
  • 2 digital outputs ± 24 V onboard
  • Standard interfaces onboard 2x Ethernet (TCP/IP), 2x USB, Display port
  • Fiber optic interface for ibaNet onboard; supports 32Mbit Flex, 32Mbit, 5Mbit, 3Mbit, 2Mbit; 2 ST-FO connectors (50/125 µm and 62.5/125 µm) for RX/TX
  • Installed with ibaPDA software for 64 signals
  • Extendable up to 1024 signals with additional licenses
  • Client-server-architecture
  • 2 Data Stores
  • Extendable with modules of the PADU-S modular system on the backplane
  • Extendable with ethernet based interfaces
  • Fanless
  • Rugged metal case

Remarks:

  • Protected by WIBU USB hardlock
  • Remote access via ibaPDA-Client through ethernet interface
  • To use a compact UPS in operation with ibaDAQ is highly recommended.
  • Contains software maintenance and support after the purchase for 2 years. Afterwards a software maintenance and support contract is required.


----------

  • Remarks: Current delivery duration approx. 6 month minimum

on request
