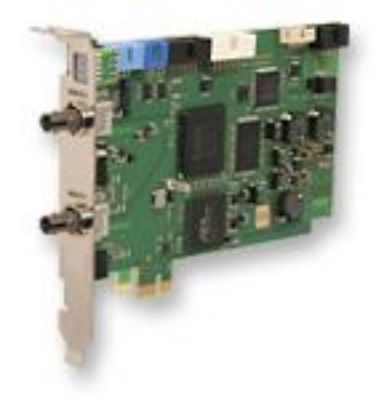

ibaFOB-2i-Dexp

2x fiber optic inputs, DMA functionality, PCI-Express card - Fiber Optical Board (Simplex) with 2 input links

Technical data:

• Manufacturer: iba AG
• PCI-Express fiber optic card with DMA functionality
  Compatible to the protocols used by former FOB-cards with
  2 / 3.3 / 5 / 32 Mbit/s data transmission rate
• Automatic detection for asynchronous / synchronous mode
• PCI-Express card, DMA
• Usable for PCIe-X1, -X4, -X8, -X16 slots
• 2x unidirectional optical link inputs
• 62,5/125µm fiber optic wires with ST jacks
• max. length of optical fiber of 2000m between devices

Special Remarks:

• Can be expanded with an ibaFOB-4o-D (..-PCI)
  - To an active output system with 2 FO output channels and
  - >To an output system for to mirror the 2 input links to 2 additional FO outputs
• Supported only from ibaPDA-V6, ibaQDR-V6 and ibaLogic from V4 onwards

Status:available
