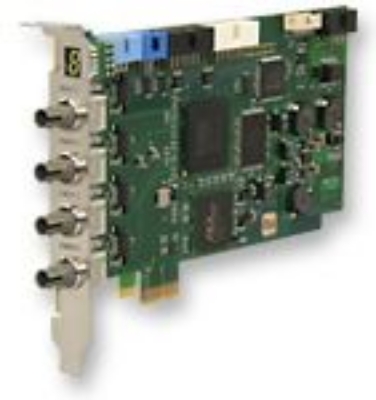

Process coupling: fiber optic board
(HarmonizedCode:84733020, ECCN:N, LKZ:DE, AG:N)
Manufacturer: iba-ag
SKU: 11.118000

4x fiber optic inputs, DMA functionality, PCI-Express card - Fiber Optical Board (Simplex) with 4 input links

Technical data:

  • Manufacturer: iba AG
  • PCI-Express fiber optic card with DMA functionality coated
    Compatible to the protocols used by former FOB-cards with
    2 - 3.3 - 5 - 32 MBit/s data transmission rate
  • Automatic detection for asynchronous - synchronous mode
  • PCI-Express card, DMA
  • Usable for PCIe-X1, -X4, -X8, -X16 slots
  • 4x unidirectional optical link inputs
  • 62,5/125┬Ám fiber optic wires with ST jacks
  • max. length of optical fiber of 2000m between devices

Special Remarks:

  • Can be expanded with an ibaFOB-4o-D (..-PCI)
    - To an active output system with 4 FO output channels and
    - To an output system for to mirror the 4 input links to 4 additional FO outputs
    - Supported only from ibaPDA-V6, ibaQDR-V6 and ibaLogic from V4 onwards



Customers who bought this item also bought

Mounting Angle for PADU-S modular

Mounting Angle for PADU-S-Modular System (HarmonizedCode:84733080, ECCN:N, LKZ:DE, AG:N)


Data acquisition device: Modular System (HarmonizedCode:84733080, ECCN:N, LKZ:DE, AG:N)


Process Interface: Modular System (HarmonizedCode:84733080, ECCN:N, LKZ:DE, AG:N)

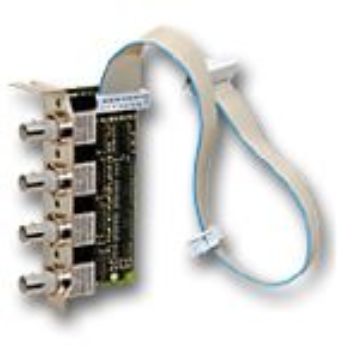

ibaFOB-4o-D rackline-slot
