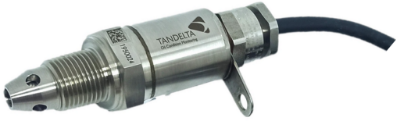

Name | Ex Gen II Oil Quality Sensor |
Product Number | OQSx-G2-HAZ-NP1 |
Material | Stainless Steel AISI304 |
Dimensions | 118mm x 46mm (L x W) |
Weight | 160g |
Connection | 32mm AF Hex Collar |
Torque | 25N m |
Thread - Seal | 1/2” NPT - n/a |
Supply | +10-28.8 V DC |
Consumption | 0.4w Average |
Digital Output | RS485, CANBus |
Protocols Supported | Modbus, CANOpen and J1939 |
Output | Tan Delta Number (TDN) Oil Temperature (°C or °F) |
Accuracy | 0.01% |
Sensitivity/Accuracy | 01%, + |
Elements | All wear and contamination |
Calibrated Temperature | -20°C to +120°C |
Operating Temperature | -40°C to +120°C |
Fluid Temperature | -40°C to +120 °C |
Fluid Pressure | up to 70 bar (1015 psi) |
Storage Temperature | -55°C to +150°C |
Water & Dust | IP68 |
Shock & Vibration | BS EN 60068-2-30 (Test Db - Cyc.Hum.), BS EN 60068-2-6 (Test Fc - Sine Vib.), BS EN 60068-2-27 (Test Ea - Mech. Shock) |
EMC | EN 61000-6-4:2007 (Generic Emissions Standard for Industrial Environments), EN 61000-6-2:2005 (Generic Immunity Standard for Industrial Environments) |
Conformity | CE Marked RoHS Compliant |
