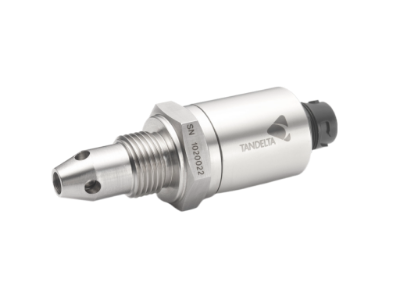

| Name | Gen 2 - Oil Quality Sensor |
| Product Number | OQSx-G2-M18 |
| Material | Stainless Steel AISI304 |
| Dimensions | 102mm x 36mm (L x W) |
| Weight | 180g |
| Connection | 32mm AF Hex Collar |
| Torque | 25N m |
| Thread - Seal | M18 - Dowty Type |
| Connector | 6-Pin Bulgin PXP4013/06P/PC |
| Supply | +9-30 V DC |
| Consumption | 0.4w Average |
| Digital Output | RS485, CANBus |
| Protocols Supported | Modbus, CANOpen and J1939 |
| Frequency | Every 2 seconds |
| Output | Tan Delta Number (TDN) Oil Temperature (°C or °F) |
| Accuracy | 0.01% |
| Elements | All wear and contamination |
| Calibrated Temperature | -20°C to +120°C |
| Operating Temperature | -40°C to +120°C |
| Fluid Temperature | -40°C to +120 °C |
| Fluid Pressure | up to 70 bar (1015 psi) |
| Storage Temperature | -55°C to +150°C |
| Water & Dust | IP67 when connected |
| Shock & Vibration | BS EN 60068-2-27 (Test Ea - Mech. Shock) |
| EMC | EN 61000-6-2:2005 (Generic Immunity Standard for Industrial Environments) |
| Conformity | CE Marked RoHS Compliant |
