ibaNet750-476/2-AI +/-10V 16Bit

Process coupling: Analog input module for ibaNet 750 (HarmonizedCode:84733080, ECCN:N, LKZ:DE, AG:N)
Tillverkare: iba-ag
Artikelnr: 15.144760

2-Channel Analog Input,+/-10V 16Bit - 2-Channel Analog Input, +/-10V, 16Bit

Technical Specification:

  • DIN rail mount
  • Power supply via system bus
  • 2 inputs +/-10V, single ended, 16 Bit
  • 2 galvanic isolated channels with common ground
  • Conversion time approx. 80ms
  • Ri 130 kOhm
  • Power consumption approx. 75mA

Special Remarks:

  • Only 2-channel-input-terminals can be used within an extension unit.
  • Warranty period extended to 5 years.

Status:available



Kunder som köpte denna köpte också

ibaNet750-403/4-DI 0.2ms

15.144030
Process coupling: Digital input module for ibaNet 750 (HarmonizedCode:84733080, ECCN:N, LKZ:DE, AG:N)

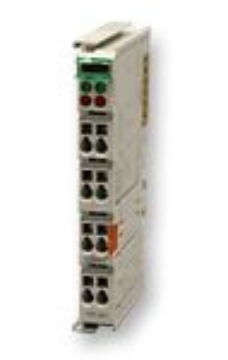

ibaNet750-600/End-Terminal
