ACCON-NetLink-PRO compact

Handy compact communication and programming adapter between PC and S7 PLCs.
Manufacturer: DELTA LOGIC
SKU: 161701-PRO
Delivery date: 1 week

The compact all-rounder among the programming adaptors between PC and S7 PLCs

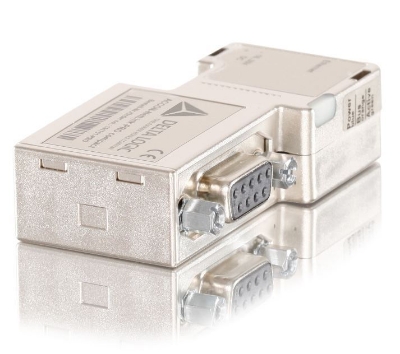

ACCON-NetLink-PRO compact is a handy communication and programming adaptor between PC and S7 controllers. The electronics of the ACCON-NetLink-PRO compact is placed in a PROFIBUS plug's case. Thus, the adapter is very small and handy.
As all-rounder, the ACCON-NetLink-PRO compact can be connected to the PLC via MPI, PROFIBUS and PPI. The ACCON-NetLink-PRO compact independently detects the current bus settings of the PLC.

Perfect fields of application

  • As programming adaptor to create and change the PLC program
  • As communication adaptor for visualisations
  • As communication adaptor for accessing the PLC's data
  • For remote maintenance via internet, intranet, dial-in router

Varied ranges of application

  • Programming S7 controllers with STEP 7
  • Changing S7 programs via a company network (intranet)
  • Projecting HMI devices with WinCC flexible
  • Connecting visualisations to S7 PLCs via TCP/IP (RFC 1006)
  • Logging S7 data via TCP/IP (e.g. with ACCON-S7-EasyLog)
  • Remote maintenance of S7 controllers via internet (VPN)

Convincing and varied

The communication of the ACCON-NetLink-PRO compact to the PC is effected via TCP/IP so that it can be used for remote maintenance purposes via router, intranet and internet. The configuration of the ACCON-NetLink-PRO compact can be created and changed via its integrated website. For the security of your facility, the access to the website is protected by a password.
The ACCON-NetLink-PRO compact supports the S7 communication via RFC 1006 (ISO on TCP). Thus, TCP/IP communication processors (e.g. CP343-1) can be replaced by this adaptor. However, projected connections are not supported. Furthermore, the ACCON-NetLink-PRO compact supports the parameterization of DP-Slaves via DP-V1 (class 2).

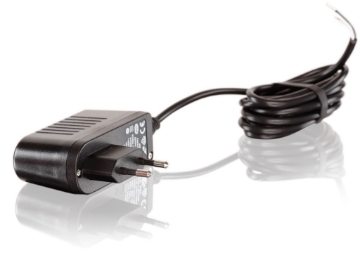

A driver for SIMATIC applications (ACCON-S7-NET) is included in delivery. The ACCON-NetLink-PRO compact is fed by the connected bus. Alternatively, you can use external 24 VDC.

Technical highlights

  • Compact design
  • Automatic bus profile detection
  • Full PROFIBUS speed up to 12 Mbps
  • Extended diagnostics
  • Supporting MPI, PROFIBUS and PPI
  • Supporting DHCP
  • Supporting slave parameterization via DP-V1 (class 2)
  • Supporting all standard SIMATIC engineering tools
  • Supporting ISO on TCP (RFC 1006)
  • Active connection cable, therefore no spur lines
  • Voltage supply from the CPU
  • External 24 VDC voltage feed possible
  • Plug with PG bushing
  • Galvanically isolated
  • Applicable up to 60 °

Technical Details

Supported operating systemsNo limitations (the Driver for SIMATIC ACCON-S7-NET is only for Windows XP, 2003R2, 7, 2008R2, 8.1, 2012R2, 10)
Hardware requirementsEthernet interface and TCP/IP protocol
Supported PLCsS7-200, S7-300, S7-400
Weight in kgca. 0.1
Dimensions (W x H x D) in mm64 x 40 x 17
Protection typeIP 20
Supply voltage24 VDC ±25 %
External voltage feed possibleYes
Power consumption75 mA
Galvanically isolatedYes
Operating temperature0 °C to 60 °C
Allowed relative humidityOperation 5 % to 85 % at 30 °C
storage 5 % to 93 % at 40 °C
Ethernet connectionRJ45 bushing
Ethernet interface10 Base-T / 100 Base-TX
Supported transmission rates Ethernet10/100 Mbps with automatic detection (10 Base-T and 100 Base-TX)
Max. number of connections to TCP/IP16
Supported bus systemsPROFIBUS, MPI, PPI
Supported bus profilesMPI and PROFIBUS (DP, Standard, Universal (DP/FMS), User-Defined) both fixed and even with automatic detection of the bus parameter, PPI
Supported transmission rates of the bus connection to the PLC9.6 Kbps to 12 Mbps with automatic detection
Max. number of connections to MPI, PROFIBUS, PPI32
Supported softwareACCON-AGLink, ACCON-S7-EasyLog, DELTALOGIC S7/S5-OPC-Server, ACCON-S7-Backup, ACCON-NCK-Explorer.
With the driver for SIMATIC ACCON-S7-NET you can additionally use SIMATIC Manager from V5.3, WinCC 6.0, WinCC flexible, ProTool, STEP 7-Micro/WIN, TIA Portal
