Data acquisition device: Input & Ouput system (HarmonizedCode:84733080, ECCN:N, LKZ:DE, AG:N)
Manufacturer: iba-ag
SKU: 14.132000

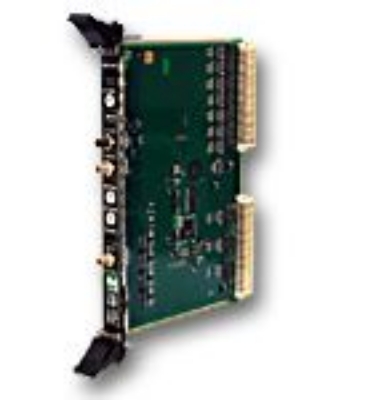

1xRX/2xTX Fiber Optic Channels; 32MBit Flex Protocol - Communication module for VME bus systems,
with 32MBit Flex protocol for an extended data streaming.

Technical data:

  • Manufacturer: iba AG
  • Connection of VME based PLC systems to ibaPDA-V6 or ibaLogic
  • Backwards compatible to ibaLink-SM-128V-i-2o
  • Can be used in all common VME32 and VME64 systems
  • Bidirectional fiber optic link for analog and digital inputs and outputs
  • Unidirectional fiber optic link for analog and digital outputs or diagnosis
  • Supported ibaNet protocols: 3.3 MBit/s, 32 MBit/s and 32Mbit Flex
  • Flexible setting of data rate, data size and formatting with 32Mbit Flex
  • Different operation modes (cascading, peer-to-peer-mode)
  • Power supply via VMEbus
  • Fast data transfer due to Dual Port RAM technology
  • Block consistent mode
  • 6U VME card format

Special Remark:
Rack to Rack coupling (MMC-VME, S5-VME,VME-VME)
