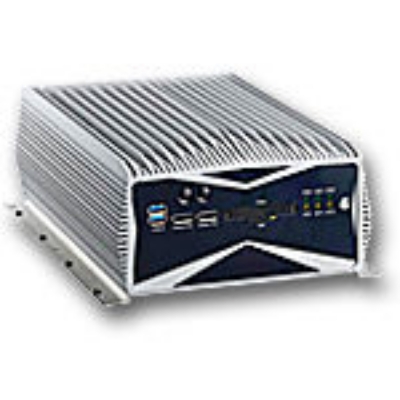

IPC-Fanless System 2xPCIe (I7) 512GB

ibaIPC-Fanless i7-7700T 2.9 GHz CPU (HarmonizedCode:847149000, ECCN:4A994A, LKZ:TW, AG:N)
Manufacturer: iba-ag
SKU: 42.824125

fanless computer with PCIe slots - Stationary Data Acquisition

Technical Data:

  • (AMI) Aluminum Chassis with MB220AF(Q170 PCH
  • Fanless Design
  • Power adaptor
  • Supporting vPro & iAMT 11.0
  • mounting brackets
  • 2x expansion slots
  • Riser-Card IP211
  • 2x PCIe
  • Front panel:
    1xDVI-D, 1xVGA, 4xUSB 2.0, 1xCFast socket, 2xSIM card slots
  • Rear panel:
    1xRS232/RS422/485 for COM#1, 5xRS232 port for COM#2/#3/#4, 2xDisplayport connector,
    2xRJ45 Gibgabit Eth port, 4xUSB 3.0
    2xUSB 2.0
  • i7-7700T 2.9 GHz CPU
  • 2x 4GB DDR4 SO-DIM
  • 2.5" 512GB MLC Wide-Temp
  • Windows 10
  • USB keyboard and mouse
  • Dimensions: 215mm x 114mm x 272mm (WxHxD)
  • Monitor sold separately
  • iba Plug&Play service (HW and Software purchased with PC installed and tested)

Remarks:

  • Only usable together with PCI-express cards!

on request
