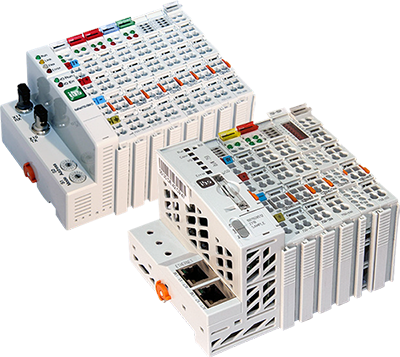

Central Unit for WAGO-I/O System 750 (HarmonizedCode:84733080, ECCN:N, LKZ:DE, AG:N)
Manufacturer: iba-ag
SKU: 15.140020

Decentralized input and output system - Use of K-bus terminals, series 750 from Company WAGO/Beckhoff for the connection with ibaPDA via Standard Ethernet

Technical Specification:

  • Manufacturer: iba AG
  • Central unit for WAGO-I/O-System 750
  • Power supply: 24 V DC (±10 %)
  • Load power supply: 24 V DC external
  • Supports up to 250 analog and digital input and Output modules and complex terminals and power terminals
  • Device can easily be detected and configured within the network topology
  • Connected/assembled terminal types are detected automatically
  • Flexible setting and use of sample rates
  • Deterministic signal transmission via Ethernet ibaNet-E Protocol
  • Assembly on the mounting rail

Special Remarks:

  • A various number of WAGO modules are available at iba




  • 31.001008  ibaPDA-Interface-ibaW-750
