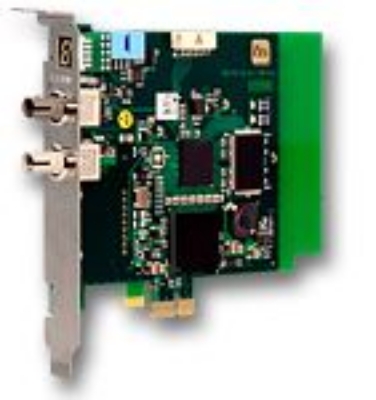

ibaFOB-SDexp

Bidirectional 96Mbit/s Rackcoupling; PCIe - Communication module for a connection to SIMADYN D or to SIMATIC TDC (Duplex FO; 96 Mbit/s)

Technical Specifications:

• Manufacturer: iba AG
• Interface to SIMADYN D via racklink communication modules CS12, CS13 or CS14
• Interface to SIMATIC TDC via communication module CP53M0
• Fastest sample rate 1ms (depends on the processor load of the used SIMADYN D / SIMATIC TDC CPU's)
• PCI-Express card, DMA
• Usable for PCIe-X1, -X4, -X8, -X16 slots
• 96Mbps dual port RAM image transfer
• Fiber optic duplex ST-ST (62.5um) to 400m (without repeater)
• Max. 4 FOB-SD cards usable in a data acquisition computer

  Operation modes:
• SD-TDC-Lite:
  16 receive channels, each with 32 analog and 32 digital signals
• Request-SD:
  + Compatibility mode:
  With existing SER04A/B functionblocks (Agents)
  + Extended mode:
  With new SER05A/B functionblocks (Agents)

  Communication channels:
• Data Request Channel:
  Request for measurement data
• Acknowledge Channel:
  Ready for measurement; data valid
• Data Receive Channel:
  Receive of measurement data
  (one channel in compatibility mode)
  (five channels in extended mode)

  Diagnosis features:
• Fully automatic recognition of the coupling partners and available CPU's
• Comfortable diagnosis with configuration display

Special Remarks:

• In combination with the Add-on license ibaPDA-Request-SD, data access to max. 50 processors per FOB-SD card can be done by using symbolic address information.
  (Refer to the programming manual for SIMATIC TDC for specific limitations!)
• Attention:
  Please make sure that the ID's for CPU, PC and Subrack are unique if more than one FOB-SD card is connected to a racklink card!

Status:available
